PVC End Cap Mould

Precision injection mould for PVC end cap production, built on CNC, VMC and EDM machines in our Ahmedabad toolroom to your product size, cavity count and machine.

Plastic
PP / ABS / PVC / CPVC / UPVC
Steel
P-20, nitrided HRC 48–50
Runner
Cold Runner
Cooling
Water

From ₹1.6 lakh · USD 2,100 · price depends on size, cavities and runner

  • Making moulds since 2002
  • Trial-tested in our own facility
  • Exported to Africa, the Middle East and South Asia
PVC End Cap Mould
PVC End Cap Mould – view 2
PVC End Cap Mould – view 3
PVC End Cap Mould – view 4
PVC End Cap Mould – view 5

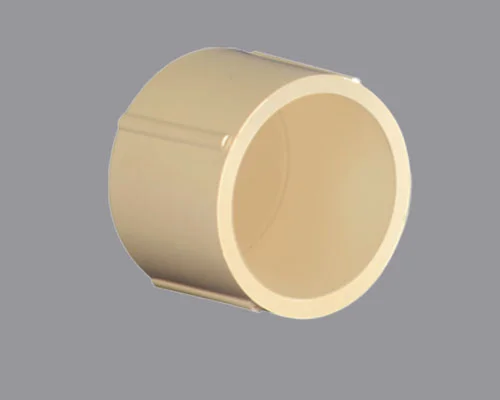

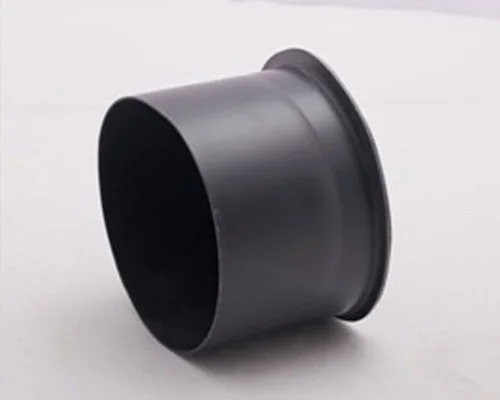

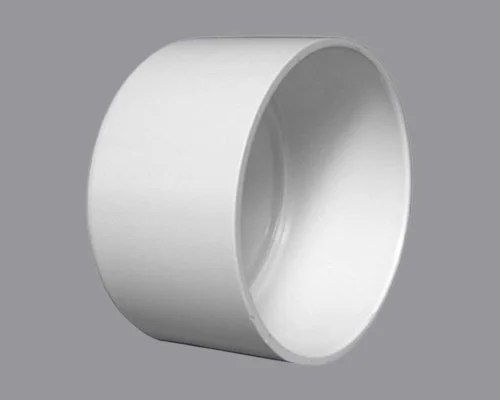

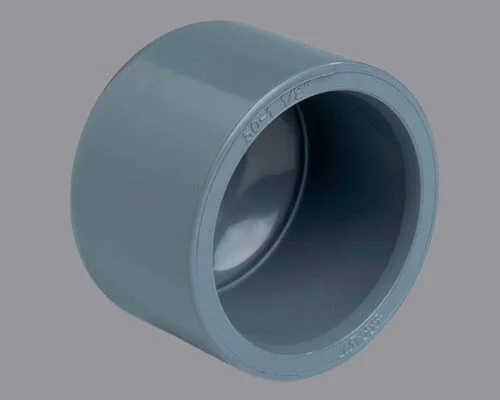

We make the injection mould. Some photos show the products made with it.

PVC End Cap Mould Manufacturer in Ahmedabad

We are known for our consistent quality standards, so we precisely design and manufacture the offered range of End Cap Injection Mold using superior quality components with the help of cutting-edge technology in adherence to international quality standards. This End Cap Die is widely appreciated due to their superior performance, robust construction, easy installation and longer service life.

Being at the threshold of technological changes, we have developed an infrastructure that is follow the international standards. Scaling high against our competitors, the quality of End Cap Mould has been consistent with the use of high-tech machines and equipment installed in our manufacturing unit. All the major units at our end are manned by our highly efficient professionals. Moreover, End Cap Die has gained immense appreciation among varied industries, owing to the prompt delivery services and easy payment options. Moreover, our experienced quality controllers check the quality of our products on diverse stages, before the closing dispatch.

What to send us for a quote

  • A sample, drawing or 3D file of your product
  • The plastic you will use
  • Your machine make and tonnage
  • The number of cavities you need

Made for your product

Send a sample, drawing or 3D file. We design the mould around your product’s size and the number of cavities you need, and share the design with you before machining starts.

Key Features

  • Hardened P-20 steel

    Cavity and core in P-20-2738 Prehard HRC 40-42; P-20-2311 Prehard HRC 30-32; P-20-2316 Prehard HRC 42-45; Liquid nitrided, hardened to HRC 48-50.

  • Cold runner

    Cold runner.

  • Water-cooled

    Cooling channels keep the cycle steady for continuous production.

  • Clean ejection

    Ejector Pin, Stripper, Air Valve ejection for a clean release of every part.

  • Polished finish

    Polish, Chrome, Nitriding surfaces, anti-corrosive colour coated, diamond polished finish.

Technical Data

Values marked “as per your product” are fixed with you after the cost evaluation.

Mould
Mould Name PVC End Cap Mould
Plastic Material PP / ABS / PVC / CPVC / UPVC
Suitable Machine As per your product
Mould Life As per your product
Mould Cycle Time As per your product
Mould Size As per your product
Mould Cavity As per your product
Mould Running Automatic / Manual
Steel and finish
Mould Cavity Material P-20-2738 Prehard HRC 40-42
P-20-2311 Prehard HRC 30-32
P-20-2316 Prehard HRC 42-45
Liquid nitrided, hardened to HRC 48-50
Heat Treatment HRC 50
Mould Finish Anti-Corrosive Colour Coated, Diamond Polished
Mould Core Material P-20-2738 Prehard HRC 40-42
P-20-2311 Prehard HRC 30-32
P-20-2316 Prehard HRC 42-45
Liquid nitrided, hardened to HRC 48-50
Back Plate Material C-45 Prehard HRC 25-30
EN-31 Prehard HRC 25-30
Mould Surface Treatment Polish, Chrome, Nitriding
Runner, gates and ejection
Mould Ejector System Ejector Pin / Stripper / Air Valve
Mould Cooling System Water Cooling
Mould Runner Cold Runner
Mould Cold Runner As per your product
Gate Type As per your product
Packing and supply
Outer Packaging Standard Export Wooden Case
Supply Ability As per your order
Inner Package Stretch Waterproof Film & Each Mould Painted with Anti-Rust Oil
Delivery Time As per your product

How We Build Your Mould

  1. 1

    Cost evaluation

    Send your product sample, drawing or 3D file and your machine details. You get a cost evaluation, usually within two working days.

  2. 2

    Mould design

    Our designers prepare the mould design around your product and share it with you for approval.

  3. 3

    Machining

    CNC, VMC and EDM machining, assembly, polishing and hardening in our toolroom.

  4. 4

    Trial and inspection

    Trial runs in our own testing facility, then visual and CMM inspection of the parts.

  5. 5

    Packing and delivery

    Anti-rust oil, waterproof film and a standard export wooden case, then dispatch to you.

See our full process.

FAQs

How much does a PVC end cap mould cost?

Prices start from ₹1.6 lakh (about USD 2,100). The final price depends on the product size, the number of cavities, the runner system (hot or cold) and the steel. Send us your product details for an exact quote.

Yes. Send a sample, drawing or 3D file. We design the mould around your product and share the design with you for approval before machining starts.

Yes. Each mould is painted with anti-rust oil, wrapped in waterproof film and packed in a standard export wooden case. We supply manufacturers in Bangladesh, Kenya, Nepal, Nigeria, Sri Lanka, Tanzania and the UAE, among others.

PVC end cap moulds are usually manufactured using advanced machining techniques, such as CNC (Computer Numerical Control) milling or EDM (Electrical Discharge Machining), to ensure accuracy and precision in the moulding process.

The lifespan of PVC end cap moulds depends on various factors, including the quality of the mould, frequency of use, maintenance practices, and the type of PVC material being moulded. With proper care, they can last for a significant number of production cycles.

PVC end cap moulds are specifically designed for PVC materials. However, with modifications and adjustments, they can be used to mould other thermoplastic materials with similar properties.

It usually begins with a drawing/sketch or similar samples/prototype. We then collect the data required for an injection mould quote and any special material requirements if you may have, after study of your material & through our interview process. Once we have all of the information we need, we will complete your quote. If the project is approved, we ask for an initial advance payment of 50% of the mould cost to cover material costs, and the mould making begins. When your mould is completed, we will take mould trial & produce a few parts out of it, if you need more samples from mould running, we may supply, it may attract extra cost which is not included in the price of the mould, and when parts are approved, the remaining 50% of the mould is invoiced.

In general, the steps for designing a standard injection mold based on the design of the plastic part would be; Design and analysis of the plastic part to avoid defects (analysis of defectology) Demoldability analysis of the plastic part (verification of undercuts) (location of parting line) Calculation of the shrinkage of the part (material dependent) Cycle Time Calculation Estimation of the Number of Cavities Sizing of the Cavity and Core Plates Sizing and selection of the Feeding System Sizing and choosing the Ejection System Sizing of the mold venting system Sizing and selection of the Cooling System Sizing of sliders and internal pins (if there are undercuts) Minimum capacities of injection machine (Clamping Force and Injection shot)
