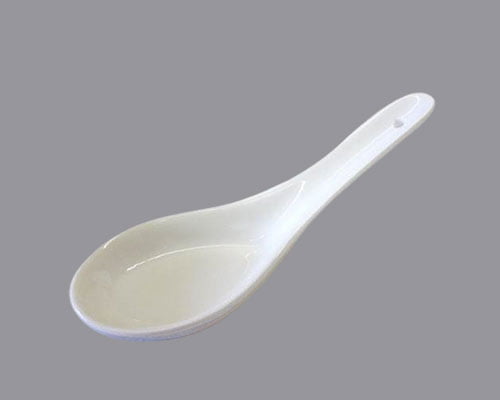

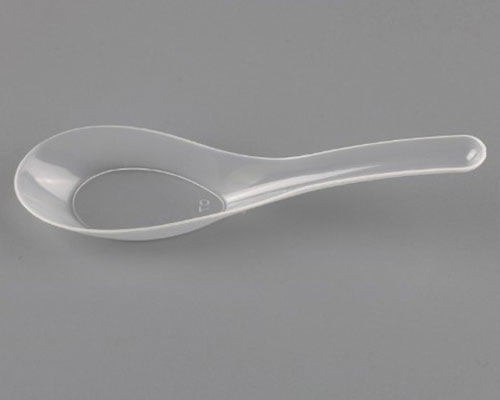

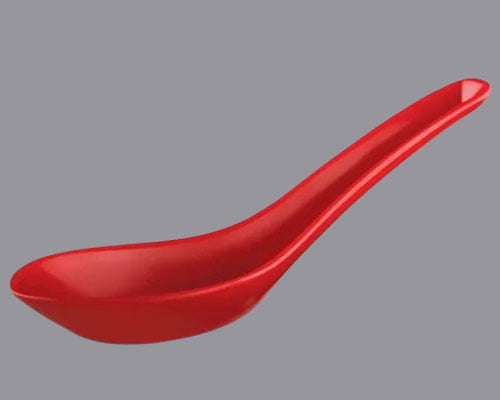

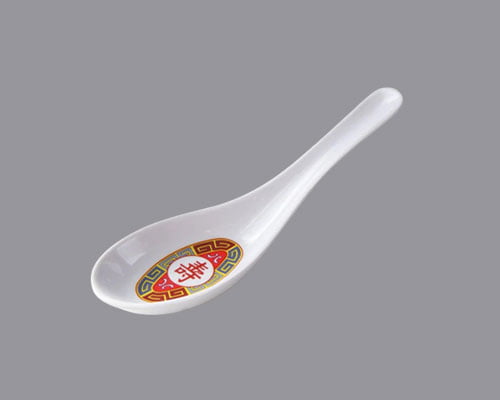

We make the injection mould. Some photos show the products made with it.
Precision injection mould · Since 2002
Plastic Soup Spoon Mould
Precision injection mould for soup spoon production, built on CNC, VMC and EDM machines in our Ahmedabad toolroom to your product size, cavity count and machine.
- Plastic PS / PP
- Machine 100–200 ton
- Steel P-20, nitrided HRC 48–50
- Runner Hot or cold
Starting from ₹1.75 lakh | USD 2,350
The final price depends on product size, number of cavities and runner type.
Or call +91 97242 35313 · info@rdplastmould.com
- Making moulds since 2002
- Trial-tested in our own facility
- Exported to Africa, the Middle East and South Asia
Soup Spoon Mould Manufacturer in Ahmedabad
This Soup Spoon Injection Mould is manufactured in our organization and is effectively managed by our team of talented professionals. Also, the widespread infrastructure is equipped with hi-tech amenities. At every stage of the Manufacturing of Plastic Soup Spoon Mould. We make sure our mould meets our predefined quality standards. Our Plastic Soup Spoon Injection Mold.
We customize this soup spoon mould according to client requirements by spoon size, spoon shape, spoon deep, spoon handle, and spoon curves. After successfully making this Soup Spoon Injection Die we test this mould in-house. When we are sure that this mould has all quality parameter standards that we predefine, we can start packaging to deliver this mould to you safely. We manufacture and design attractive soup spoons to make the product most attractive and beautify your appetizer bowl decently.
What to send us for a quote
- A sample, drawing or 3D file of your product
- The plastic you will use
- Your machine make and tonnage
- The number of cavities you need
Made for your product
Send a sample, drawing or 3D file. We design the mould around your product’s size and the number of cavities you need, and share the design with you before machining starts.
Key Benefits
Technical Data
Full specification of the mould. Values marked “as per your product” are fixed with you after the cost evaluation.
| Mould | |
|---|---|
| Mould Name | Soup Spoon Mould |
| Plastic Material | PS / PP |
| Suitable Machine | 100 to 200 Tons |
| Mould Life | 60,000,000 Shots |
| Mould Features | 2 Plate Mould, Stripper/Split |
| Mould Size | 400 X 400 X 280 mm 500 X 500 X 280 mm |
| Mould Cavity | 18 to 32 Cavity |
| Mould Running | Automatic / Manual |
| Mould Cycle Time | 10.8 Seconds |
| Runner, gates and ejection | |
| Mould Ejector System | Ejector Pin / Stripper / Air Valve |
| Mould Hot Runner | Tip Type, Screw Type, Manifold Type, etc. |
| Mould Cooling System | Water Cooling |
| Mould Runner | Hot Runner / Cold Runner |
| Mould Cold Runner | Point Gate, Side Gate, Sub Gate, Tunnel Gate, Direct Gate, etc. |
| Gate Type | Side Gate, Sub Gate, Pin Point Gate, Edge Gate, etc. |
| Steel and finish | |
|---|---|
| Mould Cavity Material | P-20-2738 Prehard HRC 40-42 P-20-2311 Prehard HRC 30-32 Liquid nitrided, hardened to HRC 48-50 |
| Mould Surface Treatment | Polish, Chrome, Nitriding |
| Mould Finish | Anti-Corrosive Colour Coated, Diamond Polished |
| Mould Core Material | P-20-2738 Prehard HRC 40-42 P-20-2311 Prehard HRC 30-32 Liquid nitrided, hardened to HRC 48-50 |
| Back Plate Material | C-45 Prehard HRC 25-30 EN-31 Prehard HRC 25-30 |
| Heat Treatment | HRC 50 |
| Packing and supply | |
| Outer Packaging | Standard Export Wooden Case |
| Supply Ability | 20 Mould Per Month |
| Inner Package | Stretch Waterproof Film & Each Mould Painted with Anti-Rust Oil |
| Delivery Time | 30 Days For T1 Sample |
Customisation Options
We build the mould around your product. These are the parts you can choose.
How We Build Your Mould
From your sample or drawing to a trial-tested mould, in five steps. See our full process.
-
Step 1
Cost evaluation
Send your product sample, drawing or 3D file and your machine details. You get a cost evaluation, usually within two working days.
-
Step 2
Mould design
Our designers prepare the mould design around your product and share it with you for approval.
-
Step 3
Machining
CNC, VMC and EDM machining, assembly, polishing and hardening in our toolroom.
-
Step 4
Trial and inspection
Trial runs in our own testing facility, then visual and CMM inspection of the parts.
-
Step 5
Packing and delivery
Anti-rust oil, waterproof film and a standard export wooden case, then dispatch to you.
Other Names and Related Searches
Buyers, suppliers and catalogues use different names for this tool. All of these mean the same soup spoon mould:
- Soup Spoon Mould
- Soup Spoon Mold
- Soup Spoon Die
- Plastic Soup Spoon Mould
- Soup Spoon Injection Mould
- Disposable Soup Spoon Die
- Plastic Soup Spoon Injection Mold
- SS Soup Spoon Mould
- Soup Disposable Plastic Spoon Mould
- Aluminum Soup Spoon Mold
Buyers look for this mould with many different searches. We make it in our Ahmedabad toolroom and supply it across India and abroad:
- Soup Spoon Die Mould
- Plastic Soup Spoon Die
- Soup Spoon Injection Die Mould
- Plastic Soup Spoon Injection Die Maker In India
- Disposable Soup Spoon Mold
- Soup Spoon Mould Manufacturer In Ahmedabad
- Soup Spoon Injection Mould In Gujarat
- Stainless Steel Soup Spoon Mould Maker
- Soup Spoon Moulding Die
- Soup Spoon Moulder
- Plastic Soup Spoon Mold
- Soup Spoon Injection DIe
- Disposable Soup Spoon Mould
- Soup Spoon Mould Manufacturer
- Soup Spoon Mould Exporter
- Soup Spoon Mould Supplier
- Plastic Soup Spoon Injection Mould
- Top Soup Disposable Plastic Spoon Mould Manufacturer
- Cavity Soup Spoon Mould
- Soup Spoon Mould manufacturers & suppliers
Other moulds we make that buyers of this mould often ask for. See all spoon moulds.
R. D. Mould & Industries designs and builds this soup spoon mould in Ahmedabad, in its toolroom at Odhav, Gujarat. We have been making injection moulds since 2002, for plastic product makers in India and abroad.
As a soup spoon mould manufacturer and exporter in India, we pack every mould in an export wooden case and ship it to buyers in Bangladesh, Kenya, Nepal, Nigeria, Sri Lanka, Tanzania and the UAE.
