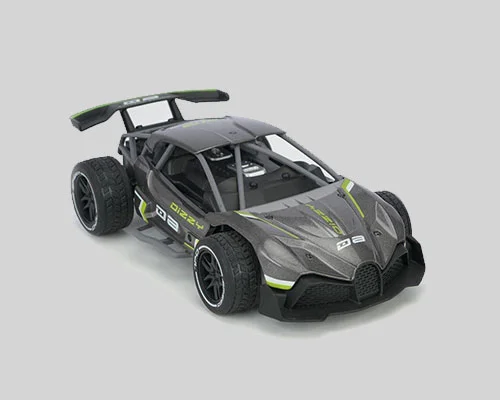

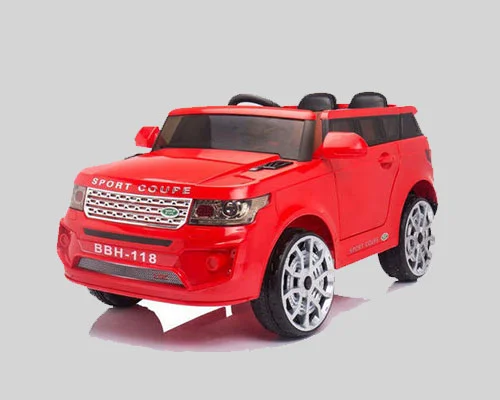

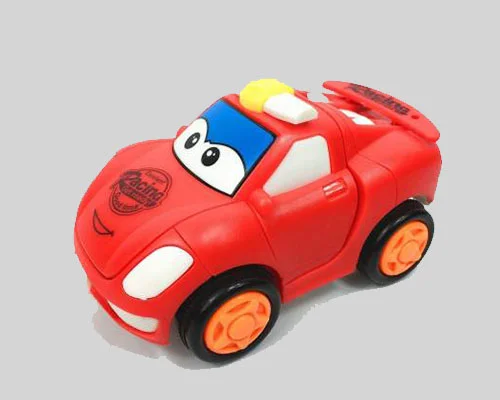

We make the injection mould. Some photos show the products made with it.
Precision injection mould · Since 2002
Plastic Toy Car Mould
Precision injection mould for plastic toy car production, built on CNC, VMC and EDM machines in our Ahmedabad toolroom to your product size, cavity count and machine.
- Plastic PS / PP
- Machine 100–200 ton
- Steel P-20, nitrided HRC 48–50
- Runner Hot or cold
Starting from ₹1.75 lakh | USD 2,350
The final price depends on product size, number of cavities and runner type.
Or call +91 97242 35313 · info@rdplastmould.com
- Making moulds since 2002
- Trial-tested in our own facility
- Exported to Africa, the Middle East and South Asia
Plastic Toy Car Mould Manufacturer in Ahmedabad
With the sincerity and hard work of our experts, we R. D. Plast Mould and Industry have carved a niche for ourselves in this domain by offering high quality and durable Toy Car Mould . The provided Toy Car Injection Mould is manufactured using high-grade raw material and sophisticated technology by our adept professionals in sync with defined industry standards. We provide this mould in accurate dimensions to meet the needs of our clients. In order to ensure its quality, this mould is properly tested on various parameters.
We also customized this Plastic Children Toy Car Injection Mould as per our client’s requirement. We provide various toy car mold & plastic toy car dies to the clients from India, USA, UK, Germany, Spain, Italy, Russia, and so on.
What to send us for a quote
- A sample, drawing or 3D file of your product
- The plastic you will use
- Your machine make and tonnage
- The number of cavities you need
Made for your product
Send a sample, drawing or 3D file. We design the mould around your product’s size and the number of cavities you need, and share the design with you before machining starts.
Key Benefits
Technical Data
Full specification of the mould. Values marked “as per your product” are fixed with you after the cost evaluation.
| Mould | |
|---|---|
| Mould Name | Plastic Toy Car Mould |
| Plastic Material | PS / PP |
| Suitable Machine | 100 to 200 Tons |
| Mould Life | As per your product |
| Mould Cycle Time | As per your product |
| Mould Size | As per your product |
| Mould Cavity | As per your product |
| Mould Running | Automatic / Manual |
| Runner, gates and ejection | |
| Mould Ejector System | Ejector Pin / Stripper / Air Valve |
| Mould Cold Runner | Point Gate, Side Gate, Sub Gate, Tunnel Gate, Direct Gate, etc. |
| Gate Type | Side Gate, Sub Gate, Pin Point Gate, Edge Gate, etc. |
| Mould Runner | Hot Runner / Cold Runner |
| Mould Hot Runner | Tip Type, Screw Type, Manifold Type, etc. |
| Mould Cooling System | Water Cooling |
| Steel and finish | |
|---|---|
| Mould Cavity Material | P-20-2738 Prehard HRC 40-42 P-20-2311 Prehard HRC 30-32 Liquid nitrided, hardened to HRC 48-50 |
| Heat Treatment | HRC 50 |
| Mould Core Material | P-20-2738 Prehard HRC 40-42 P-20-2311 Prehard HRC 30-32 Liquid nitrided, hardened to HRC 48-50 |
| Back Plate Material | C-45 Prehard HRC 25-30 EN-31 Prehard HRC 25-30 |
| Mould Surface Treatment | Polish, Chrome, Nitriding |
| Mould Finish | Anti-Corrosive Colour Coated, Diamond Polished |
| Packing and supply | |
| Inner Package | Stretch Waterproof Film & Each Mould Painted with Anti-Rust Oil |
| Delivery Time | As per your product |
| Outer Packaging | Standard Export Wooden Case |
| Supply Ability | As per your order |
How We Build Your Mould
From your sample or drawing to a trial-tested mould, in five steps. See our full process.
-
Step 1
Cost evaluation
Send your product sample, drawing or 3D file and your machine details. You get a cost evaluation, usually within two working days.
-
Step 2
Mould design
Our designers prepare the mould design around your product and share it with you for approval.
-
Step 3
Machining
CNC, VMC and EDM machining, assembly, polishing and hardening in our toolroom.
-
Step 4
Trial and inspection
Trial runs in our own testing facility, then visual and CMM inspection of the parts.
-
Step 5
Packing and delivery
Anti-rust oil, waterproof film and a standard export wooden case, then dispatch to you.
Other Names and Related Searches
Buyers, suppliers and catalogues use different names for this tool. All of these mean the same plastic toy car mould:
- Plastic Toy Car Mold
- Plastic Toy Car Die
- Plastic Toy Car Injection Mould
- Children Toy Car Mould
- Toy Car Die
- Plastic Kids Toy Car Mould
- Car Toy Die Mould
- Plastic Car Mould
- Game Car Mould
- Toys Motor Car Mould
Buyers look for this mould with many different searches. We make it in our Ahmedabad toolroom and supply it across India and abroad:
- Toy Car Mould
- Toy Car Injection Mould
- Toy Car Hot Runner Injection Mould
- Remote Toy Car Mould
- Remote Control Plastic Toy Car Injection Mould
- Children's Toy Car Plastic Injection Mould
- Toy Car Mould Suppliers and Manufacturers
- Plastic Four Wheeler Toy Car Mold In Ahmedabad
- Injection Plastic Toy Car Mould
- Remote Control Toy Car Injection Plastic Mould
- Plastic Toy Car Injection Mold
- Plastic Toy Car Injection Die
- Toy Car Mould Manufacturer
- Toy Car Mould Exporter
- Plastic Toy Car Mould Supplier
- Car Toy Mould India
- Swing Car Mould
- Toy Mould Maker In Gujarat
- Toy Car Mould Maker
- Injection Plastic Toy Car Die
Other moulds we make that buyers of this mould often ask for. See all toy moulds.
R. D. Mould & Industries designs and builds this plastic toy car mould in Ahmedabad, in its toolroom at Odhav, Gujarat. We have been making injection moulds since 2002, for plastic product makers in India and abroad.
As a plastic toy car mould manufacturer and exporter in India, we pack every mould in an export wooden case and ship it to buyers in Bangladesh, Kenya, Nepal, Nigeria, Sri Lanka, Tanzania and the UAE.
