Plastic Hardware Moulds

R. D. Mould & Industries makes plastic hardware moulds in Ahmedabad, Gujarat, for makers of sanitary and plumbing products: water taps and cocks, and pipe fittings such as elbows, tees, couplers, unions, valves and end caps. Buyers also call it a hardware mold, a tap mould, a bib cock mould or a PVC fitting mould.

Every hardware mould is built to your requirement: start from a reference product, a drawing or 3D design, a concept, or just the purpose, such as a fitting for a given pipe size. We work out the design with you, machine the mould on CNC, VMC and EDM machines in our toolroom and trial-test it in our own facility, so the first parts come out right on your machine. Our hardware moulds are built for PP, ABS, PVC, CPVC or UPVC. Since 2002 we have supplied moulds across India and to buyers abroad.

The designs below are hardware moulds we have built. Use them as examples, or ask for a mould for your own tap or fitting, in any size and number of cavities.

Taps and cocks

• Plastic Angle Cock Mould: angle cocks for basin and toilet water connections.

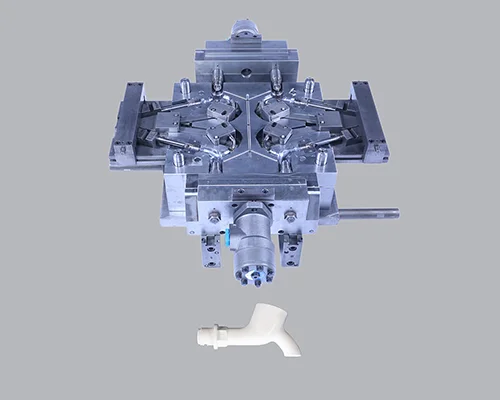

• Plastic Bib Cock Mould: the common wall-mounted water tap.
• Plastic Cello Cock Mould.
• Plastic Pan Bib Cock Mould.
• Plastic Polo Tap Mould.
• Plastic Push Flow Cock Mould.
• Plastic R Handle Tap Mould.
• Plastic RO Tap Mould: taps for RO water purifiers.
• Plastic Swan Cock Mould: swan-neck taps for sinks.

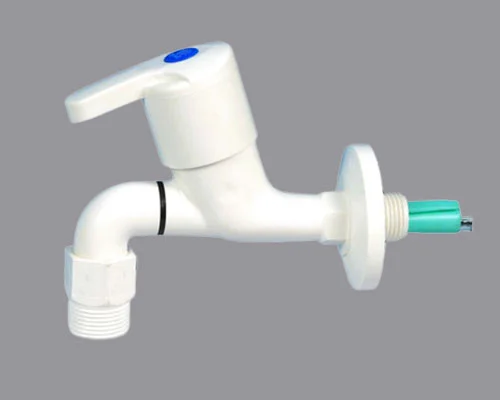

• Plastic T Handle Tap Mould.
• Plastic T-Cock Mould.

PVC pipe fittings

• PVC Ball Valve Mould: ball valves to open and close a pipe line.
• PVC Coupler & Reducing Coupler Mould: couplers to join two pipes, also of different sizes.
• PVC Elbow Mould: elbows to turn a pipe line.
• PVC End Cap Mould: caps that close a pipe end.
• PVC Flange Mould: flanges to bolt pipes to valves and pumps.
• PVC Male & Female Adapter Mould: adapters between threaded and plain pipe ends.
• PVC Male & Female End Plug Mould: plugs to close male and female fittings.
• PVC Tee Mould: tees to branch a pipe line.
• PVC U Clamp Mould: U clamps that hold pipes to a wall.
• PVC Union Mould: unions that let a pipe line be opened again.

PVC pipe fitting moulds start from ₹1.6 lakh (about USD 2,100). Tap and cock moulds start from ₹1.75 lakh for a bib cock; most other tap and cock moulds, such as angle cocks, swan cocks and RO taps, are from ₹4.5 lakh (about USD 5,800). The final price depends on the product size, the number of cavities, the runner system and the steel.

1. Your requirement and cost evaluation. Send a reference product, a drawing or 3D design, a concept or just the purpose, with your machine details if you know them. You get a cost evaluation, usually within two working days.
2. Product and mould design. Our designers work out the design from what you sent and share it with you for approval before machining starts.
3. Machining. CNC, VMC and EDM machining, assembly, polishing and hardening in our toolroom.
4. Trial and inspection. Trial runs in our own testing facility, then visual and CMM inspection of the parts.
5. Packing and delivery. Anti-rust oil, waterproof film and a standard export wooden case, then dispatch to you.

See our full process.
