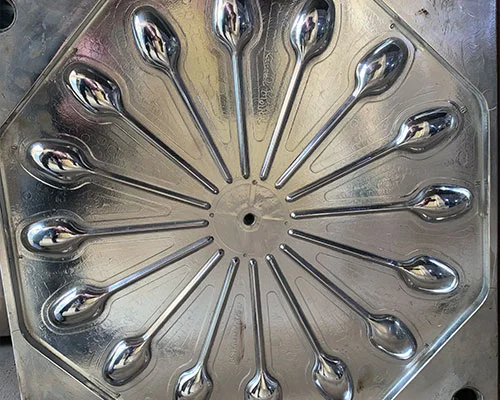

We make the injection mould. Some photos show the products made with it.
Precision injection mould · Since 2002
Plastic Spoon Mould
Precision injection mould for plastic spoon production, built on CNC, VMC and EDM machines in our Ahmedabad toolroom to your product size, cavity count and machine.
- Plastic PS / PP
- Machine 100–200 ton
- Steel P-20, nitrided HRC 48–50
- Runner Hot or cold
Starting from ₹1.75 lakh | USD 2,350
The final price depends on product size, number of cavities and runner type.
Or call +91 97242 35313 · info@rdplastmould.com
- Making moulds since 2002
- Trial-tested in our own facility
- Exported to Africa, the Middle East and South Asia
Plastic Spoon Mould Manufacturer in Ahmedabad
Being one of the best organizations, we are offering a Plastic Spoon Injection Mould. This product is executed by our skilled professionals using high-grade tools and advanced technology. Our professionals check all the quality parameters associated with this Plastic Spoon Die and our Disposable Plastic Spoon Injection Mould perform in the best possible manner. We offer this Plastic Spoon Injection Die as per the requirements of our clients.
Further, the offered Injection Mould is highly demanded by our clients for its cost-effectiveness and promptness features. Our Disposable Plastic Spoon Molds are high in demand due to their premium quality, seamless finish, different patterns, and affordable prices. Furthermore, we ensure to timely deliver these products to our clients, through this we have gained a huge clients base in the market. We offer a customizable Plastic Spoon Mould.
What to send us for a quote
- A sample, drawing or 3D file of your product
- The plastic you will use
- Your machine make and tonnage
- The number of cavities you need
Made for your product
Send a sample, drawing or 3D file. We design the mould around your product’s size and the number of cavities you need, and share the design with you before machining starts.
Key Benefits
Technical Data
Full specification of the mould. Values marked “as per your product” are fixed with you after the cost evaluation.
| Mould | |
|---|---|
| Mould Name | Plastic Spoon Mould |
| Plastic Material | PS / PP |
| Suitable Machine | 100 to 200 Tons |
| Mould Life | 60,000,000 Shots |
| Mould Features | 2 Plate Mould, Stripper/Split |
| Mould Size | 400 X 400 X 280 mm 500 X 500 X 280 mm |
| Mould Cavity | 18 to 32 Cavity |
| Mould Running | Automatic / Manual |
| Mould Cycle Time | 10.8 Seconds |
| Runner, gates and ejection | |
| Mould Ejector System | Ejector Pin / Stripper / Air Valve |
| Mould Hot Runner | Tip Type, Screw Type, Manifold Type, etc. |
| Mould Cooling System | Water Cooling |
| Mould Runner | Hot Runner / Cold Runner |
| Mould Cold Runner | Point Gate, Side Gate, Sub Gate, Tunnel Gate, Direct Gate, etc. |
| Gate Type | Side Gate, Sub Gate, Pin Point Gate, Edge Gate, etc. |
| Steel and finish | |
|---|---|
| Mould Cavity Material | P-20-2738 Prehard HRC 40-42 P-20-2311 Prehard HRC 30-32 Liquid nitrided, hardened to HRC 48-50 |
| Mould Surface Treatment | Polish, Chrome, Nitriding |
| Mould Finish | Anti-Corrosive Colour Coated, Diamond Polished |
| Mould Core Material | P-20-2738 Prehard HRC 40-42 P-20-2311 Prehard HRC 30-32 Liquid nitrided, hardened to HRC 48-50 |
| Back Plate Material | C-45 Prehard HRC 25-30 EN-31 Prehard HRC 25-30 |
| Heat Treatment | HRC 50 |
| Packing and supply | |
| Outer Packaging | Standard Export Wooden Case |
| Supply Ability | 20 Mould Per Month |
| Inner Package | Stretch Waterproof Film & Each Mould Painted with Anti-Rust Oil |
| Delivery Time | 30 Days For T1 Sample |
Customisation Options
We build the mould around your product. These are the parts you can choose.
How We Build Your Mould
From your sample or drawing to a trial-tested mould, in five steps. See our full process.
-
Step 1
Cost evaluation
Send your product sample, drawing or 3D file and your machine details. You get a cost evaluation, usually within two working days.
-
Step 2
Mould design
Our designers prepare the mould design around your product and share it with you for approval.
-
Step 3
Machining
CNC, VMC and EDM machining, assembly, polishing and hardening in our toolroom.
-
Step 4
Trial and inspection
Trial runs in our own testing facility, then visual and CMM inspection of the parts.
-
Step 5
Packing and delivery
Anti-rust oil, waterproof film and a standard export wooden case, then dispatch to you.
