Precision injection mould · Since 2002

Plastic Ice Cube Tray Mould

Precision injection mould for plastic ice cube tray production, built on CNC, VMC and EDM machines in our Ahmedabad toolroom to your product size, cavity count and machine.

Plastic
PS / PP
Machine
100–200 ton
Steel
P-20, nitrided HRC 48–50
Runner
Hot or cold

From ₹1.5 lakh · USD 1,950 · price depends on size, cavities and runner

  • Making moulds since 2002
  • Trial-tested in our own facility
  • Exported to Africa, the Middle East and South Asia

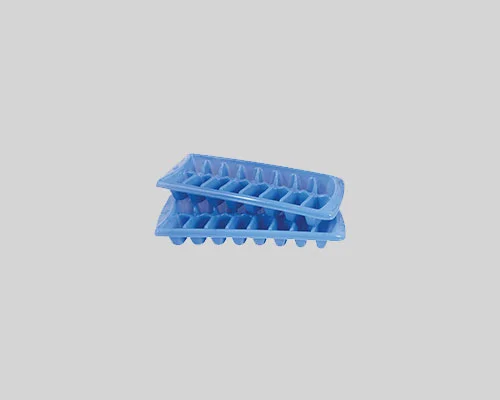

Plastic Ice Cube Tray Mould

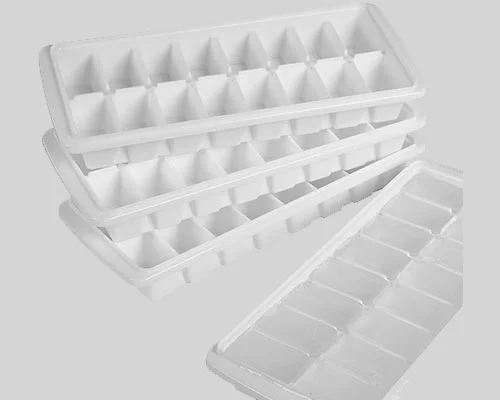

Plastic Ice Cube Tray Mould – view 2

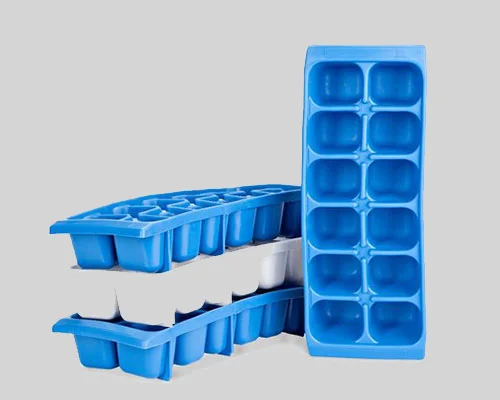

Plastic Ice Cube Tray Mould – view 3

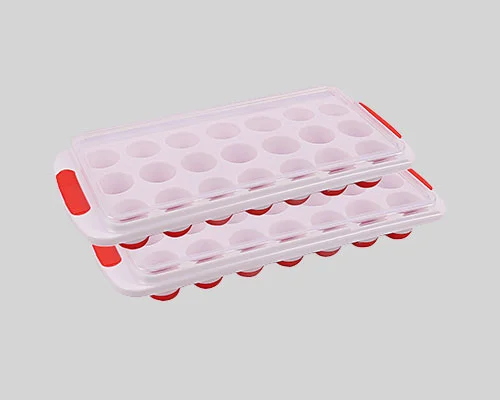

Plastic Ice Cube Tray Mould – view 4
Plastic Ice Cube Tray Mould – view 5

We make the injection mould. Some photos show the products made with it.

Plastic Ice Cube Tray Mould Manufacturer in Ahmedabad

Our industries are one of the most suggested organizations that provide complete solutions related to offering various Ice Cube Tray Mould . Our manufactured Ice Cube Tray Die is high in demand due to their premium quality, different patterns, and affordable prices. Furthermore, we ensure to timely deliver these moulds to our clients, through this We have gained a huge clients base in the market.

We offer these Ice Cubes Tray Mold in various specifications such as colours, designs, shapes, and sizes to meet the diverse requirements of our clients. Moreover, our offered Ice Cube Tray Injection Die can also be customized as per the requirements of our clients. The optimum quality of raw material is sourced from the authentic vendors of the market to manufacture these Ice Cube Tray Injection Mold as per the set industry standards and norms. The products which are made by our moulds are known for their features such as lightweight, durability, superior finish and accurate dimensions.

What to send us for a quote

  • A sample, drawing or 3D file of your product
  • The plastic you will use
  • Your machine make and tonnage
  • The number of cavities you need

Made for your product

Send a sample, drawing or 3D file. We design the mould around your product’s size and the number of cavities you need, and share the design with you before machining starts.

Key Features

  • Hardened P-20 steel

    Cavity and core in P-20-2738 Prehard HRC 40-42; P-20-2311 Prehard HRC 30-32; Liquid nitrided, hardened to HRC 48-50.

  • Hot or cold runner

    Hot runner (tip type, screw type, manifold type) or cold runner with side gate, sub gate, pin point gate, edge gate gates.

  • Water-cooled

    Cooling channels keep the cycle steady for continuous production.

  • Clean ejection

    Ejector Pin, Stripper, Air Valve ejection for a clean release of every part.

  • Polished finish

    Polish, Chrome, Nitriding, Vacuum Hardening surfaces, anti-corrosive colour coated, diamond polished finish.

  • Fits your machine

    Built for 100 to 200 ton injection moulding machines, for automatic / manual running.

Technical Data

Values marked “as per your product” are fixed with you after the cost evaluation.

Mould
Mould Name Plastic Ice Cube Tray Mould
Plastic Material PS / PP
Suitable Machine 100 to 200 Tons
Mould Life As per your product
Mould Cycle Time As per your product
Mould Size As per your product
Mould Cavity As per your product
Mould Running Automatic / Manual
Steel and finish
Mould Cavity Material P-20-2738 Prehard HRC 40-42
P-20-2311 Prehard HRC 30-32
Liquid nitrided, hardened to HRC 48-50
Heat Treatment HRC 50
Mould Core Material P-20-2738 Prehard HRC 40-42
P-20-2311 Prehard HRC 30-32
Liquid nitrided, hardened to HRC 48-50
Back Plate Material C-45 Prehard HRC 25-30
EN-31 Prehard HRC 25-30
Mould Surface Treatment Polish, Chrome, Nitriding, Vacuum Hardening
Mould Finish Anti-Corrosive Colour Coated, Diamond Polished
Runner, gates and ejection
Mould Ejector System Ejector Pin / Stripper / Air Valve
Mould Cold Runner Point Gate, Side Gate, Sub Gate, Tunnel Gate, Direct Gate, etc.
Gate Type Side Gate, Sub Gate, Pin Point Gate, Edge Gate, etc.
Mould Runner Hot Runner / Cold Runner
Mould Hot Runner Tip Type, Screw Type, Manifold Type, etc.
Mould Cooling System Water Cooling
Packing and supply
Inner Package Stretch Waterproof Film & Each Mould Painted with Anti-Rust Oil
Delivery Time As per your product
Outer Packaging Standard Export Wooden Case
Supply Ability As per your order

How We Build Your Mould

  1. 1

    Cost evaluation

    Send your product sample, drawing or 3D file and your machine details. You get a cost evaluation, usually within two working days.

  2. 2

    Mould design

    Our designers prepare the mould design around your product and share it with you for approval.

  3. 3

    Machining

    CNC, VMC and EDM machining, assembly, polishing and hardening in our toolroom.

  4. 4

    Trial and inspection

    Trial runs in our own testing facility, then visual and CMM inspection of the parts.

  5. 5

    Packing and delivery

    Anti-rust oil, waterproof film and a standard export wooden case, then dispatch to you.

See our full process.

FAQs

How much does a plastic ice cube tray mould cost?

Prices start from ₹1.5 lakh (about USD 1,950). The final price depends on the product size, the number of cavities, the runner system (hot or cold) and the steel. Send us your product details for an exact quote.

It is built for 100 to 200 ton injection moulding machines. Tell us your machine make and tonnage and we match the mould size and connections to it.

Yes. Each mould is painted with anti-rust oil, wrapped in waterproof film and packed in a standard export wooden case. We supply manufacturers in Bangladesh, Kenya, Nepal, Nigeria, Sri Lanka, Tanzania and the UAE, among others.

The mould consists of two or more halves that are fitted together. Molten plastic is injected into the mould, which takes the shape of the tray. After cooling and solidification, the mould is opened, and the ice cube tray is ejected.

Yes, plastic ice cube tray moulds can be customized according to specific client requirements. Mould manufacturers can create unique designs, sizes, and features based on client specifications.

It’s not compulsory to share the sample but If you have, please share, It helps us a lot.

When selecting a mould manufacturer, consider factors such as experience, reputation, quality standards, production capacity, lead times, and after-sales support. It's also essential to evaluate their ability to deliver customized solutions.

The cost of a plastic ice cube tray mould varies depending on factors such as size, complexity, material, and customization requirements. It's best to contact mould manufacturers directly to get accurate pricing based on your specific needs.

Other Names and Related Searches

Buyers, suppliers and catalogues use different names for this tool. All of these mean the same plastic ice cube tray mould:

  • Plastic Ice Cube Tray Mold
  • Ice Mould
  • Ice Mold
  • Ice Cube Mold
  • Ice Cube Mould
  • Ice Tray Mould
  • ICube Tray Mould
  • Ice Cube Tray Injection Mould
  • plastic ice mould
  • Plastic Ice Cube Tray Injection Die

Buyers look for this mould with many different searches. We make it in our Ahmedabad toolroom and supply it across India and abroad:

  • Plastic Ice Cube Tray Die
  • Ice Cube Tray Mold Manufacturer in Ahmedabad
  • Plastic Ice Mold Manufacturers in Gujarat
  • round ice cube mold
  • Cube Tray Die Exporters
  • Plastic Ice Cube Injection Mould
  • Plastic ice cube tray mould diy
  • silicone ice tray molds
  • Large plastic ice cube tray mould
  • Ice Cube Tray Die
  • Ice Cube Tray Injection Mold
  • Plastic Ice Cube Tray Mould Manufacturer
  • Plastic Ice Cube Tray Mold Exporter
  • Plastic Ice Cube Tray Die Mould Supplier
  • Ice Cube Tray Mould Manufacturer In India
  • Best Ice Cube Tray Mould Manufacturer
  • Top Ice Cube Tray Mould Maker
  • Cube Ice Tray Mould

R. D. Mould & Industries designs and builds this plastic ice cube tray mould in Ahmedabad, in its toolroom at Odhav, Gujarat. We have been making injection moulds since 2002, for plastic product makers in India and abroad.

As a plastic ice cube tray mould manufacturer and exporter in India, we pack every mould in an export wooden case and ship it to buyers in Bangladesh, Kenya, Nepal, Nigeria, Sri Lanka, Tanzania and the UAE.
