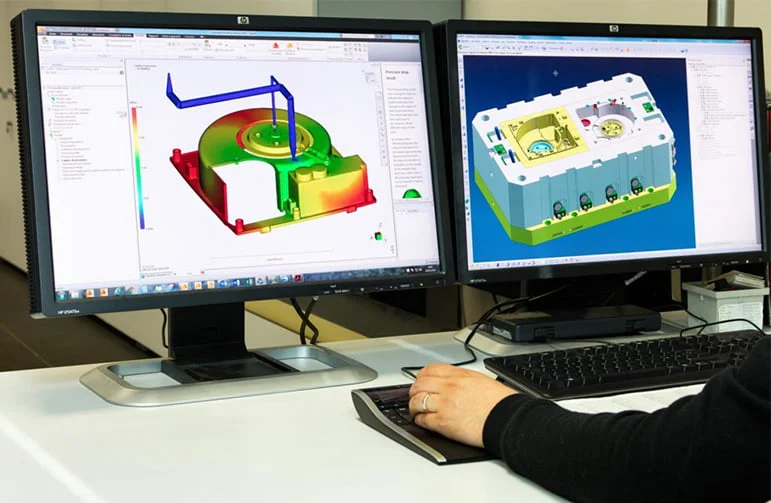

Injection Mould Designing Process

After the evaluation process, Preliminary 2D and 3D design models are constructed to determine mold sides and steel sizes. Once these are reviewed and approved, the detailed design is finalized. The tool builder is given the tool design specifications for mold construction. Final adjustments and modifications are done in-house, with special attention given to manufacturability and critical dimensional requirements.

These step is handled by our experts who have prosperous experience and skill. Moreover, we render this service at low costs. Injection Mold Design Types include single and multi-cavity injection molds. Other capabilities such as engineering, inspection, CAD modeling and testing are offered. Suitable for bottle applications, chemical, pharmaceutical, cosmetics, manufacturing and food and beverage industries served.

  • 2D and 3D Drawing

  • 2D & 3D Design Review

  • Process Design and Drawings Review

  • Part & Mould Design Review

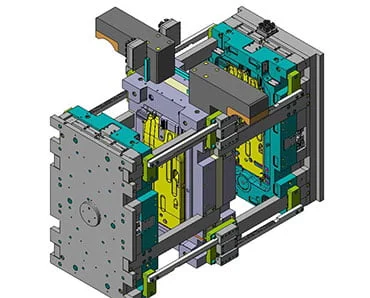

Plastic Injection Mould 2D & 3D Designing

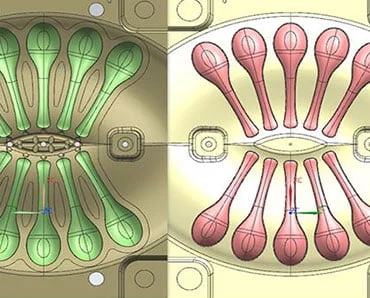

Plastic Injection Mould Designing

 In addition to functional and structural issues, processing issues play a large role in the design of an injection molded plastic part. Dividing a part into basic groups will help you to build your part in a logical manner while minimizing molding problems.  We R. D. Mould & Industry are well known designers & Manufacturers of injection mould. After successfully making the design, we send the design to you for confirmation. After receiving your confirmation our designing team forward the design to production & manufacturing will start in a few times.
