Precision injection mould · Since 2002
Plastic Cello Cock Mould
Precision injection mould for plastic cello cock production, built on CNC, VMC and EDM machines in our Ahmedabad toolroom to your product size, cavity count and machine.
- Plastic
- PP / ABS / PVC / CPVC / UPVC
- Steel
- P-20, nitrided HRC 48–50
- Runner
- Cold Runner
- Cooling
- Water
From ₹4.5 lakh · USD 5,800 · price depends on size, cavities and runner
- Making moulds since 2002
- Trial-tested in our own facility
- Exported to Africa, the Middle East and South Asia

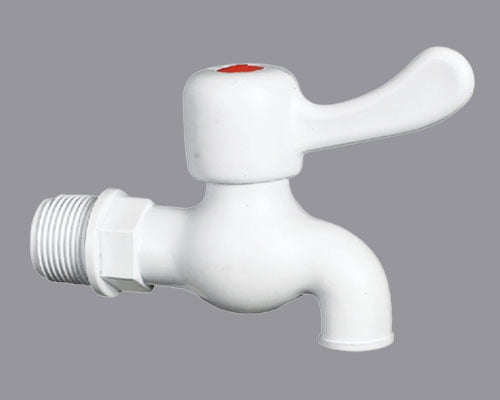

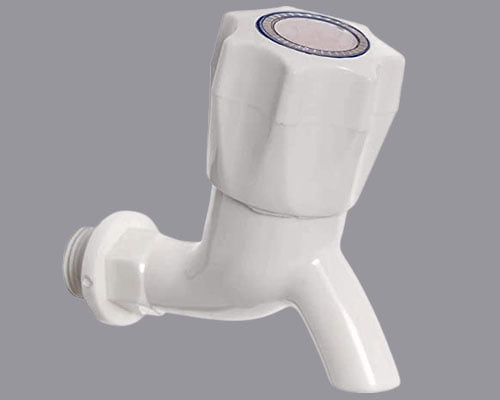

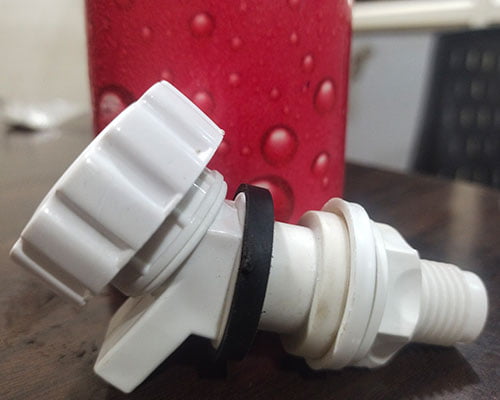

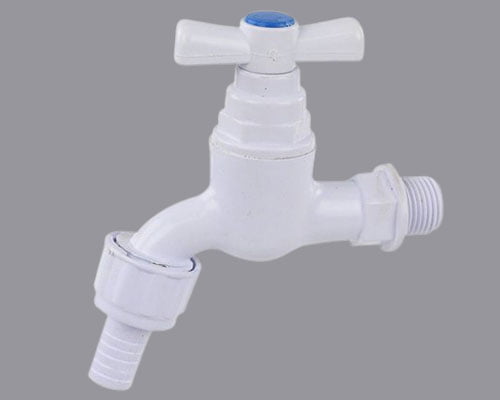

We make the injection mould. Some photos show the products made with it.
Plastic Cello Cock Mould Manufacturer in Ahmedabad
The whole range of Cello Cock Mold offered by us is manufactured using high grade quality raw material, advanced machinery and technology. These materials are obtained from the reliable and trustworthy vendors of the market. We are backed by modern infrastructural facilities that enable us to undertake bulk manufacturing projects and complete the same within the stipulated time.
Owing to the expertise of our highly skilled professionals, we are able to manufacture, export and supply an optimum quality. We ensure our clients that this Cello Cock Injection Die is thoroughly tested for quality on different parameters. This Cello Cock Mold is offered in different colors and sizes as per the choice of clients. Offered Cello Cock Mold are designed by considering optimum quality components in accordance with the laid industry standards and norms. Moreover, our clients can avail these Cello Cock Die from us at a leading market price.
What to send us for a quote
- A sample, drawing or 3D file of your product
- The plastic you will use
- Your machine make and tonnage
- The number of cavities you need
Made for your product
Send a sample, drawing or 3D file. We design the mould around your product’s size and the number of cavities you need, and share the design with you before machining starts.
Key Features
-
Hardened P-20 steel
Cavity and core in P-20-2738 Prehard HRC 40-42; P-20-2311 Prehard HRC 30-32; P-20-2316 Prehard HRC 42-45; Liquid nitrided, hardened to HRC 48-50.
-
Cold runner
Cold runner.
-
Water-cooled
Cooling channels keep the cycle steady for continuous production.
-
Clean ejection
Ejector Pin, Stripper, Air Valve ejection for a clean release of every part.
-
Polished finish
Polish, Chrome, Nitriding surfaces, anti-corrosive colour coated, diamond polished finish.
Technical Data
Values marked “as per your product” are fixed with you after the cost evaluation.
| Mould | |
|---|---|
| Mould Name | Plastic Cello Cock Mould |
| Plastic Material | PP / ABS / PVC / CPVC / UPVC |
| Suitable Machine | As per your product |
| Mould Life | As per your product |
| Mould Cycle Time | As per your product |
| Mould Size | As per your product |
| Mould Cavity | As per your product |
| Mould Running | Automatic / Manual |
| Steel and finish | |
|---|---|
| Mould Cavity Material | P-20-2738 Prehard HRC 40-42 P-20-2311 Prehard HRC 30-32 P-20-2316 Prehard HRC 42-45 Liquid nitrided, hardened to HRC 48-50 |
| Heat Treatment | HRC 50 |
| Mould Finish | Anti-Corrosive Colour Coated, Diamond Polished |
| Mould Core Material | P-20-2738 Prehard HRC 40-42 P-20-2311 Prehard HRC 30-32 P-20-2316 Prehard HRC 42-45 Liquid nitrided, hardened to HRC 48-50 |
| Back Plate Material | C-45 Prehard HRC 25-30 EN-31 Prehard HRC 25-30 |
| Mould Surface Treatment | Polish, Chrome, Nitriding |
| Runner, gates and ejection | |
|---|---|
| Mould Ejector System | Ejector Pin / Stripper / Air Valve |
| Mould Cooling System | Water Cooling |
| Mould Runner | Cold Runner |
| Mould Cold Runner | As per your product |
| Gate Type | As per your product |
| Packing and supply | |
|---|---|
| Outer Packaging | Standard Export Wooden Case |
| Supply Ability | As per your order |
| Inner Package | Stretch Waterproof Film & Each Mould Painted with Anti-Rust Oil |
| Delivery Time | As per your product |
How We Build Your Mould
- 1
Cost evaluation
Send your product sample, drawing or 3D file and your machine details. You get a cost evaluation, usually within two working days.
- 2
Mould design
Our designers prepare the mould design around your product and share it with you for approval.
- 3
Machining
CNC, VMC and EDM machining, assembly, polishing and hardening in our toolroom.
- 4
Trial and inspection
Trial runs in our own testing facility, then visual and CMM inspection of the parts.
- 5
Packing and delivery
Anti-rust oil, waterproof film and a standard export wooden case, then dispatch to you.
See our full process.
FAQs
Other Names and Related Searches
Buyers, suppliers and catalogues use different names for this tool. All of these mean the same plastic cello cock mould:
- Plastic Cello Cock Mould
- Plastic Cello Cock Mold
- Plastic Cello Cock Die
- Plastic Injection Cello Cock Mould
- Cold Runner Plastic Cello Cock Mould
- Plastic 2 Way Cello Cock Injection Die
- Plastic Pan Cello Cock Mould
- Cello Cock Injection Mold
- Plastic Cello Angle Cock Mould
- Automatic Plastic Injection Cello Cock Mould
Buyers look for this mould with many different searches. We make it in our Ahmedabad toolroom and supply it across India and abroad:
- Plastic Injection Cello Cock Die.
- Hot Runner Plastic Cello Cock Mold
- Plastic 2 Way Cello Cock Injection Mould
- Plastic Cello T Handle Cock Mould
- Plastic Cello Bib Cock Mould
- Cello Cock Injection Die
- Cello Cock Mould Manufacturer In India
- Cello Cock Die Maker In Ahmedabad
- Cello Cock injection Mold Supplier From Gujarat
- Automatic Plastic Injection Cello Cock Mould Manufacturer
- Plastic Cello Cock Mould Manufacturer
- Plastic Cello Cock Mould Exporter
- Plastic Cello Cock Mould Supplier
- Cello Cock Mould
- Cello Cock Mold
- Cello Cock Die
- Plastic Injection Cello Cock Mold
- Hot Runner Plastic Cello Cock Die
- Plastic 2 Way Cello Cock Injection Mold
- Cello Cock Injection Mould
Other moulds we make that buyers of this mould often ask for. See all hardware moulds.
R. D. Mould & Industries designs and builds this plastic cello cock mould in Ahmedabad, in its toolroom at Odhav, Gujarat. We have been making injection moulds since 2002, for plastic product makers in India and abroad.
As a plastic cello cock mould manufacturer and exporter in India, we pack every mould in an export wooden case and ship it to buyers in Bangladesh, Kenya, Nepal, Nigeria, Sri Lanka, Tanzania and the UAE.
Get a price for this mould
from ₹4.5 lakh USD 5,800
Leave your number and we call you back.
+91 97242 35313 · info@rdplastmould.com
- Making moulds since 2002
- Trial-tested in our own facility
- Exported to Africa, the Middle East and South Asia
Need a plastic cello cock mould? Call +91 97242 35313 or write to info@rdplastmould.com
