PVC U Clamp Mould

Precision injection mould for PVC U clamp production, built on CNC, VMC and EDM machines in our Ahmedabad toolroom to your product size, cavity count and machine.

Plastic
PP / ABS / PVC / CPVC / UPVC
Steel
P-20, nitrided HRC 48–50
Runner
Cold Runner
Cooling
Water

From ₹1.6 lakh · USD 2,100 · price depends on size, cavities and runner

  • Making moulds since 2002
  • Trial-tested in our own facility
  • Exported to Africa, the Middle East and South Asia

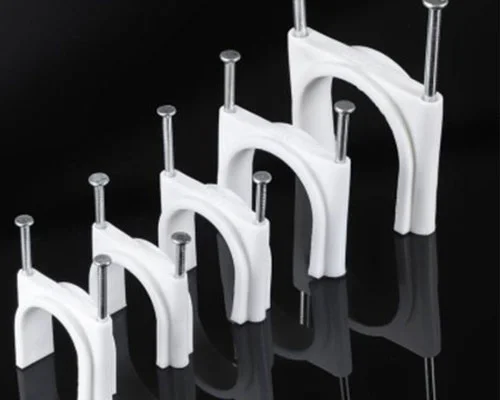

PVC U Clamp Mould

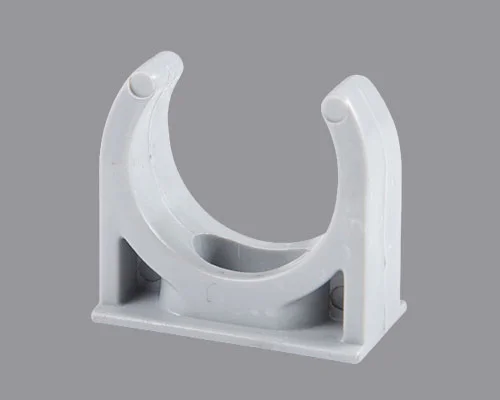

PVC U Clamp Mould – view 2

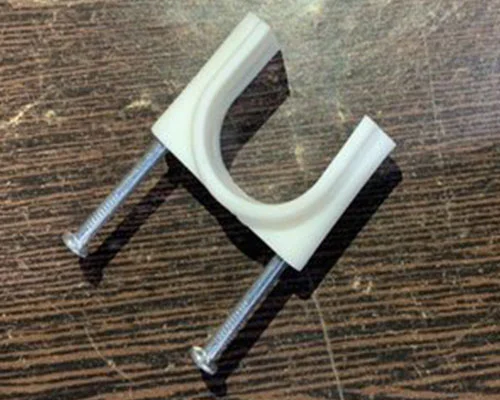

PVC U Clamp Mould – view 3

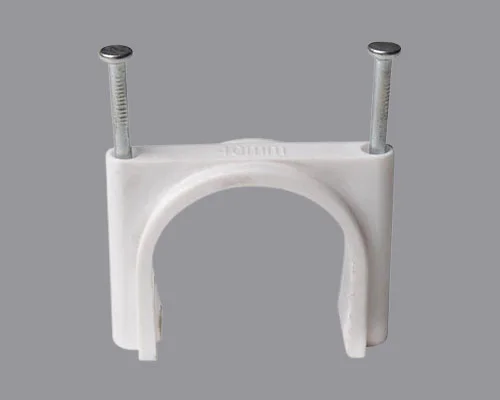

PVC U Clamp Mould – view 4
PVC U Clamp Mould – view 5

We make the injection mould. Some photos show the products made with it.

PVC U Clamp Mould Manufacturer in Ahmedabad

We are known for our consistent quality standards, so we precisely design and manufacture the offered range of PVC U Clamp Injection Mold using superior quality components with the help of cutting-edge technology in adherence to international quality standards. This U Clamp Injection Die is widely appreciated due to their superior performance, robust construction, easy installation and longer service life.

We have the advantageous support of a proficient team of experts, which works assiduously to gain maximum client satisfaction from clients. These professionals are immensely qualified in their respective field of specialization. We have also employed diligent quality controllers, who conduct various rigorous tests on U Clamp Injection Mould to ensure their quality. Our well-equipped infrastructure, widespread over a large expanse provides ample work space and assists us in undertaking & completing bulk orders of U Clamp Mold within the agreed time frame.

What to send us for a quote

  • A sample, drawing or 3D file of your product
  • The plastic you will use
  • Your machine make and tonnage
  • The number of cavities you need

Made for your product

Send a sample, drawing or 3D file. We design the mould around your product’s size and the number of cavities you need, and share the design with you before machining starts.

Key Features

  • Hardened P-20 steel

    Cavity and core in P-20-2738 Prehard HRC 40-42; P-20-2311 Prehard HRC 30-32; P-20-2316 Prehard HRC 42-45; Liquid nitrided, hardened to HRC 48-50.

  • Cold runner

    Cold runner.

  • Water-cooled

    Cooling channels keep the cycle steady for continuous production.

  • Clean ejection

    Ejector Pin, Stripper, Air Valve ejection for a clean release of every part.

  • Polished finish

    Polish, Chrome, Nitriding surfaces, anti-corrosive colour coated, diamond polished finish.

Technical Data

Values marked “as per your product” are fixed with you after the cost evaluation.

Mould
Mould Name PVC U Clamp Mould
Plastic Material PP / ABS / PVC / CPVC / UPVC
Suitable Machine As per your product
Mould Life As per your product
Mould Cycle Time As per your product
Mould Size As per your product
Mould Cavity As per your product
Mould Running Automatic / Manual
Steel and finish
Mould Cavity Material P-20-2738 Prehard HRC 40-42
P-20-2311 Prehard HRC 30-32
P-20-2316 Prehard HRC 42-45
Liquid nitrided, hardened to HRC 48-50
Heat Treatment HRC 50
Mould Finish Anti-Corrosive Colour Coated, Diamond Polished
Mould Core Material P-20-2738 Prehard HRC 40-42
P-20-2311 Prehard HRC 30-32
P-20-2316 Prehard HRC 42-45
Liquid nitrided, hardened to HRC 48-50
Back Plate Material C-45 Prehard HRC 25-30
EN-31 Prehard HRC 25-30
Mould Surface Treatment Polish, Chrome, Nitriding
Runner, gates and ejection
Mould Ejector System Ejector Pin / Stripper / Air Valve
Mould Cooling System Water Cooling
Mould Runner Cold Runner
Mould Cold Runner As per your product
Gate Type As per your product
Packing and supply
Outer Packaging Standard Export Wooden Case
Supply Ability As per your order
Inner Package Stretch Waterproof Film & Each Mould Painted with Anti-Rust Oil
Delivery Time As per your product

How We Build Your Mould

  1. 1

    Cost evaluation

    Send your product sample, drawing or 3D file and your machine details. You get a cost evaluation, usually within two working days.

  2. 2

    Mould design

    Our designers prepare the mould design around your product and share it with you for approval.

  3. 3

    Machining

    CNC, VMC and EDM machining, assembly, polishing and hardening in our toolroom.

  4. 4

    Trial and inspection

    Trial runs in our own testing facility, then visual and CMM inspection of the parts.

  5. 5

    Packing and delivery

    Anti-rust oil, waterproof film and a standard export wooden case, then dispatch to you.

See our full process.

FAQs

How much does a PVC U clamp mould cost?

Prices start from ₹1.6 lakh (about USD 2,100). The final price depends on the product size, the number of cavities, the runner system (hot or cold) and the steel. Send us your product details for an exact quote.

Yes. Send a sample, drawing or 3D file. We design the mould around your product and share the design with you for approval before machining starts.

Yes. Each mould is painted with anti-rust oil, wrapped in waterproof film and packed in a standard export wooden case. We supply manufacturers in Bangladesh, Kenya, Nepal, Nigeria, Sri Lanka, Tanzania and the UAE, among others.

PVC U Clamp Moulds are typically made from high-quality steel or aluminum alloy, known for their durability and resistance to wear and tear.

PVC U Clamp Moulds are typically manufactured using precision machining processes, such as CNC milling or EDM (Electrical Discharge Machining), to ensure accurate and consistent results.

PVC U Clamp Moulds offer precise and repeatable production of U-shaped clamps, ensuring consistency in dimensions and quality. They also provide high efficiency and long-term durability.

The manufacturing time for a PVC U Clamp Mould can vary depending on its complexity and the production capabilities of the manufacturer. It typically ranges from 30-40 days.

Choosing a reputable and experienced manufacturer is essential to ensure the quality of PVC U Clamp Moulds. Additionally, thorough inspection and testing of the molds before production can help maintain quality standards.

Other Names and Related Searches

Buyers, suppliers and catalogues use different names for this tool. All of these mean the same PVC U clamp mould:

  • PVC U Clamp Mould
  • PVC U Clamp Mold
  • PVC U Clamp Die
  • Plastic PVC U Clamp Mould
  • U Clamp Injection Mold
  • Mild Steel PVC U Clamp Injection Mould
  • Plastic U Clamp Mould
  • PVC Clamp Mould
  • PVC Pipe Clamp Mould

Buyers look for this mould with many different searches. We make it in our Ahmedabad toolroom and supply it across India and abroad:

  • U Clamp Mould Manufacturer
  • PVC U Clamp Mould Exporter from Ahmedabad
  • Plastic Brass U Clamp Mould
  • PVC U Clamp Injection Die Exporter In India
  • U Clamp Injection Mould
  • Plastic U Clamp Mold Supplier From Gujarat
  • PVC U Clamp Mold Maker In Ahmedabad
  • PVC Clamp Die In Gujarat
  • Top U Clamp Mould Manufacturer
  • Best PVC Clamp Mold Manufacturers & Suppliers
  • PVC U Clamp Mould Manufacturer
  • PVC U Clamp Mould Exporter
  • PVC U Clamp Mould Supplier
  • PVC U Clamp Injection Mold
  • U Clamp Injection Die
  • SS PVC U Clamp Mould
  • PVC Fitting Mould Manufacturer
  • PVC Clamp Mold Maker
  • PVC U Clamp Injection Mould
  • PVC U Clamp Injection Die

R. D. Mould & Industries designs and builds this PVC U clamp mould in Ahmedabad, in its toolroom at Odhav, Gujarat. We have been making injection moulds since 2002, for plastic product makers in India and abroad.

As a PVC U clamp mould manufacturer and exporter in India, we pack every mould in an export wooden case and ship it to buyers in Bangladesh, Kenya, Nepal, Nigeria, Sri Lanka, Tanzania and the UAE.
